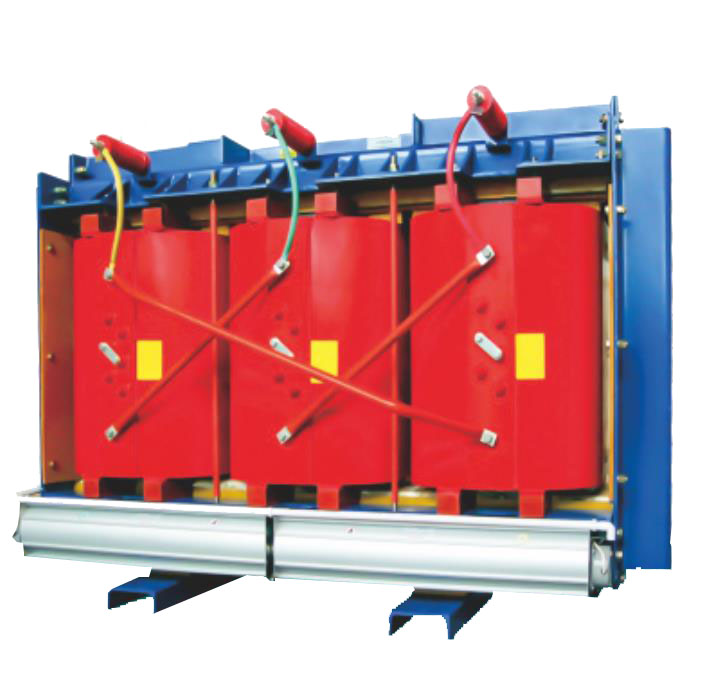

dry type transformer SCBH15-10KV

High voltage coil adopts segmented cylindrical coil , Thin insulation seal vacuum pouring.

There is the axial airway in the large capacity winding. The coil with the high voltage resistance level . low local discharge , good waterproof and dustproof effect .

Low voltage coil adopts foil coil , there is the DMD between layers , resolve the problem of imbalance of low voltage , large current coiling . Meanwhile , there is no axial winding of the spiral angle in the foil coiling . The axial force is greatly reduced in the case of short circuit . good artist , low loss , high ability of short circuit resistance .

The transformer can equip the general steel plate , aluminium alloy or stainless steel sheel according the client’s requirements , There are the IP20 , IP23 for choice , also can customized the line in out connection port of high , low voltage busbar .
